CASE STUDIES

Major Project Capabilities

Project Highlights

The development of Regional Oil Treating Facilities (“ROTF”) and tankless pad sites created new facility design improvements with greater sand return issues.

• New wellsite design reduced emissions, equipment footprint, equipment costs, reduced lease operator traffic, and reduced water / oil truck hauling traffic.

EnerCorp was awarded the Operator’s highest profile 2018 project with 12 wells to be tested under this new multi-well and multi-pad development project.

EnerCorp committed 48 filters, 48 sand cyclones, flowline packages, and 70+ field operators to manage the project.

EnerCorp invested over $10.0MM+ for this project alone to support Anadarko’s new operational design

Initial well IP almost 2x that of neighboring wells.

Over 100,000 lbs. of sand was recovered in the first 2 weeks on the first well with sand returns exceeding 70,000 lbs. / 24 hrs. on other wells.

EnerCorp Case Study

Problem

High rate centrifugal pumps eroding seals continuously when pumping to a central tank battery

• Tens of thousands in expensive pump seal repair costs
• Lost production time
• Employee hazard exposure

Solution

x2 Dual Cyclonic Sand Separators per well

x1 High Rate Sand Filter per well

Results

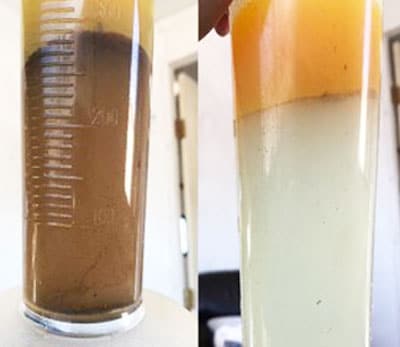

First 30 days – over 15,000 lbs of sand extracted from the well stream = 95%-96% efficiency

• Sand that made it though was ultra-fine ~74 μm – polishing agent
